Ticket UUID:	52553608646b7669b84130bfed66a289838630f7
Title:	Wrong appearance of the ttk::menubutton indicator of the "xpnative" theme
Type:	Bug	Version:	all
Submitter:	nemethi	Created on:	2025-01-22 20:06:54
Subsystem:	88. Themed Tk	Assigned To:	nobody
Priority:	5 Medium	Severity:	Minor
Status:	Closed	Last Modified:	2025-01-28 19:13:44
Resolution:	Fixed	Closed By:	nemethi
		Closed on:	2025-01-28 19:13:44

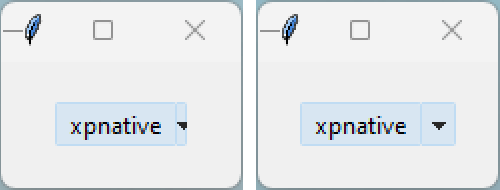

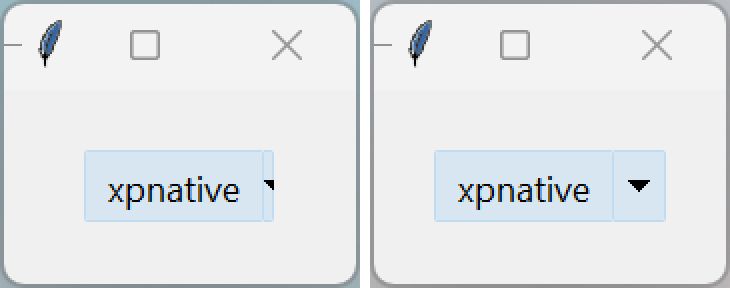

Description:	When running the attached script `xpnativeBug.tcl` on Windows, the ttk::menubutton indicator of the `xpnative` theme exhibits the artifact shown in the screenshots contained in the left half of the pictures `menubtn_100.png` and `menubtn_150.png`. The right screenshots show the expected appearance, obtained after fixing the bug that causes the issue. The screenshots were taken on a display with 100% and 150% scaling, respectively, and magnified by a factor of 2. The wrong appearance of the ttk::menubutton indicator is due to the use of the element spec `GenericElementSpec` for the `Menubutton.dropdown` element. The fix consists in using the spec `GenericSizedElementSpec` and the flags `(SM_CXVSCROLL << 8) \| SM_CYVSCROLL`.
User Comments:	nemethi (claiming to be Csaba Nemethi) added on 2025-01-28 19:13:44: Fixed in all 3 branches via [f65e7f60], [60b8f4c5], and [64bfe6da]. Closing the ticket. oehhar added on 2025-01-23 10:19:44: Thanks, Csaba ! I can reproduce and the fix looks good and effective. Thanks, Harald nemethi (claiming to be Csaba Nemethi) added on 2025-01-22 20:32:07: The fix is in the branch "bug-5255360864".

Attachments:

menubtn_150.png [download] added by nemethi on 2025-01-22 20:16:22. [details]
menubtn_100.png [download] added by nemethi on 2025-01-22 20:11:12. [details]
xpnativeBug.tcl [download] added by nemethi on 2025-01-22 20:08:53. [details]
